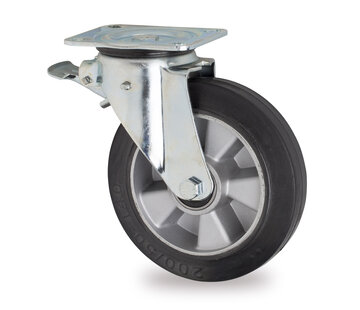

swivel castor, Ø 250 mm, elasticated rubber tyre, 500KG

Product description

transport reinforced fork / housing swivel castor made of pressed heavy plate steel, plate fitting, elastic rubber tyre, precision ball bearing, Wheel Ø 250mm, 500KG

Wheel: elastic rubber tyre, with wheel core made of aluminium, precision ball bearing,

Advantages: Versatile use with excellent rolling properties. Low-noise and vibration damping.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable surfaces: Almost any surface. Uneven surfaces such as clinkers, damaged floors and near obstacles such as thresholds.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor, Ø 250 mm, elasticated rubber tyre, 500KG

transport reinforced fork / housing swivel castor made of pressed heavy plate steel, plate fitting, elastic rubber tyre, precision ball bearing, Wheel Ø 250mm, 500KG

Delivery within 4 business days possible

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Delivery within 4 business days possible

Product information

  • SKU 174116250
  • EAN 8718116201779

Specifications

  • Non marking tread No
  • Wheel diameter 250
  • Load capacity 500
  • Overall height 289
  • Size of top plate 135x110
  • Topplate hole centres 105x80
  • Plate hole 11
  • Offset 68
  • Swivel Radius 193.0
  • Bearing type Ball bearing
  • Hardness of tread 70° Shore A
  • Tread description Elastic black vulcanised rubber tyre, with the shock-absorbing properties and low rolling resistance.
  • Temperature -20 / +85
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Galvanised
  • Series 74.11
  • Tread Solid rubber
