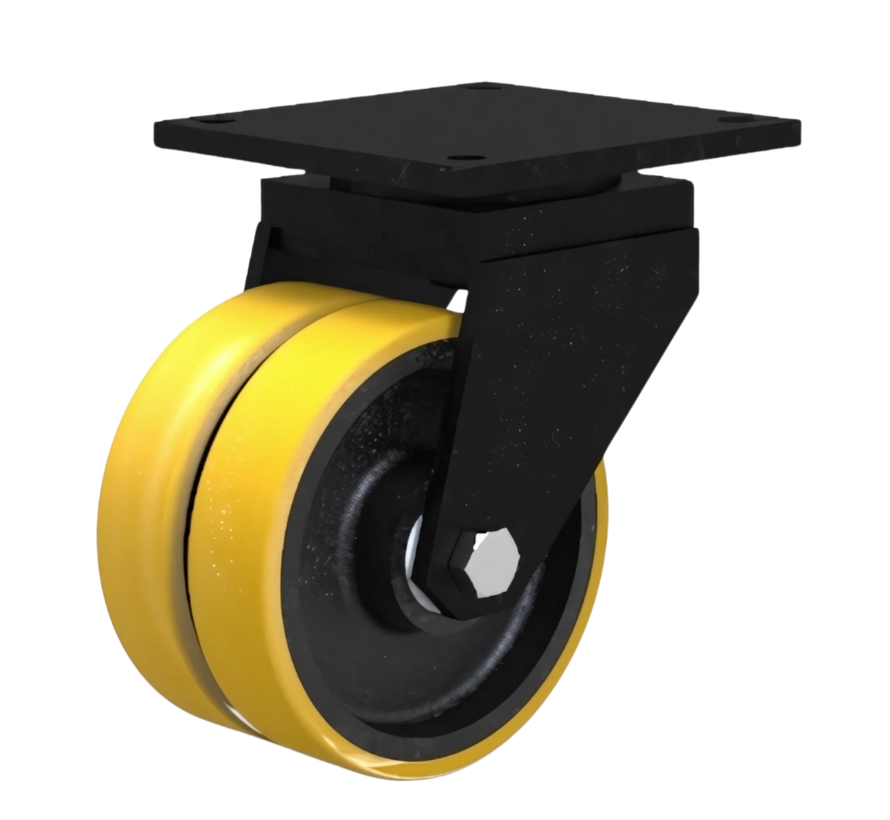

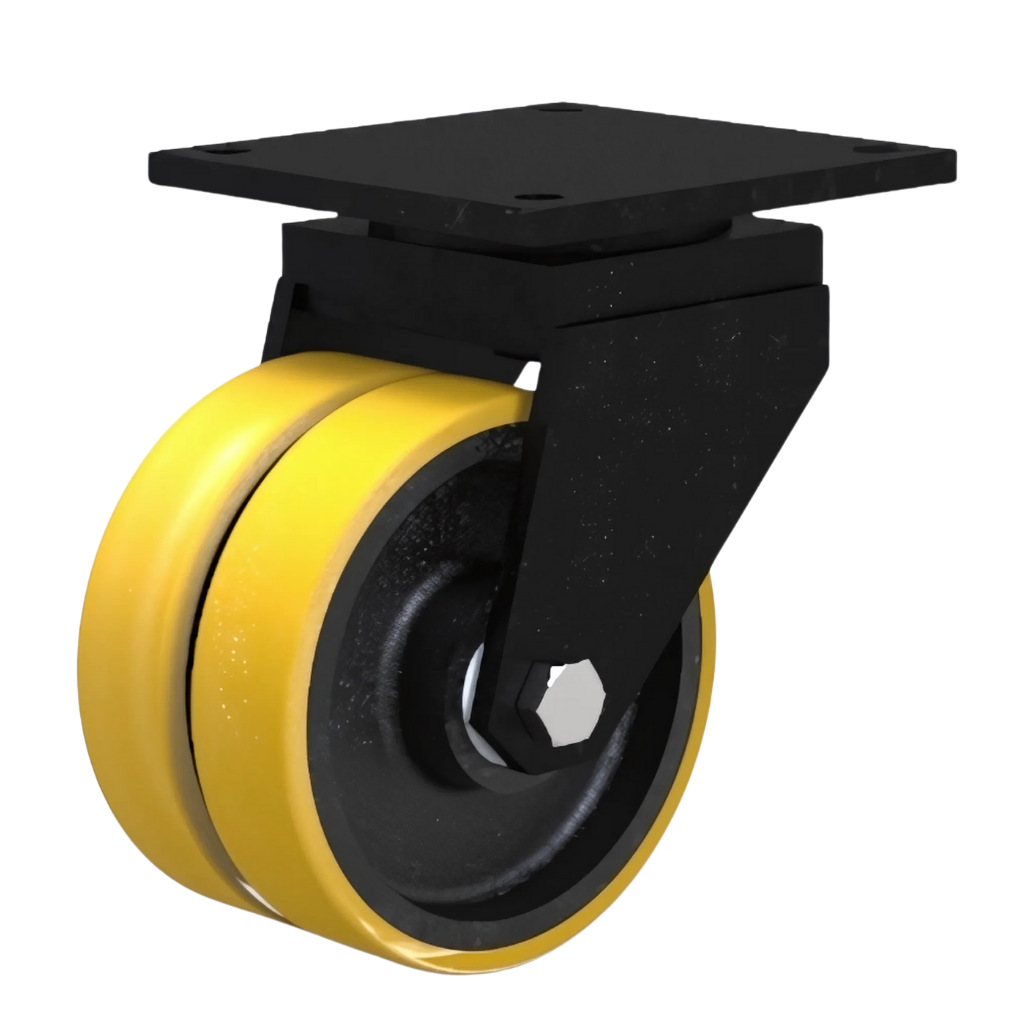

swivel castor, Ø 400mm, vulcanised polyurethane tyre, 6000KG

Product description

Heavy duty swivel castor made of welded steel fork, plate fitting, vulcanised polyurethane tyre, precision ball bearing, Wheel-Ø 400mm, 6000KG

Wheel: vulcanised polyurethane tyre, with cast iron core wheel, precision ball bearing, double wheel assembly

Advantages: For very heavy transport on flat floors. Low rolling resistance. Relatively insensitive to notches and very wear-resistant.

Applications: Heavy material handling, heavy containers, automotive factories, petrochemical plants, heavy transport, ports, armed forces, aviation, bridge cranes, chemical plants.

Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor, Ø 400mm, vulcanised polyurethane tyre, 6000KG

Heavy duty swivel castor made of welded steel fork, plate fitting, vulcanised polyurethane tyre, precision ball bearing, Wheel-Ø 400mm, 6000KG

3-4 Weeks

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: 3-4 Weeks

Product information

  • SKU 127646400
  • EAN 8718116098690

Specifications

  • Non marking tread Yes
  • Wheel diameter 400
  • Wheelwitdh 200
  • Load capacity 6000
  • Overall height 530
  • Size of top plate 315x315
  • Topplate hole centres 250x250
  • Plate hole 21
  • Offset 100
  • Swivel Radius 300.0
  • Bearing type Ball bearing
  • Hardness of tread 91° Shore A
  • Temperature -20 / +85°C
  • Castor wheel type Double wheels
  • Fitting Plate mounting
  • Series 27.64
  • Tread Polyurethane
