swivel castor with brake, Ø 100 mm, elasticated rubber tyre, 150KG

Product description

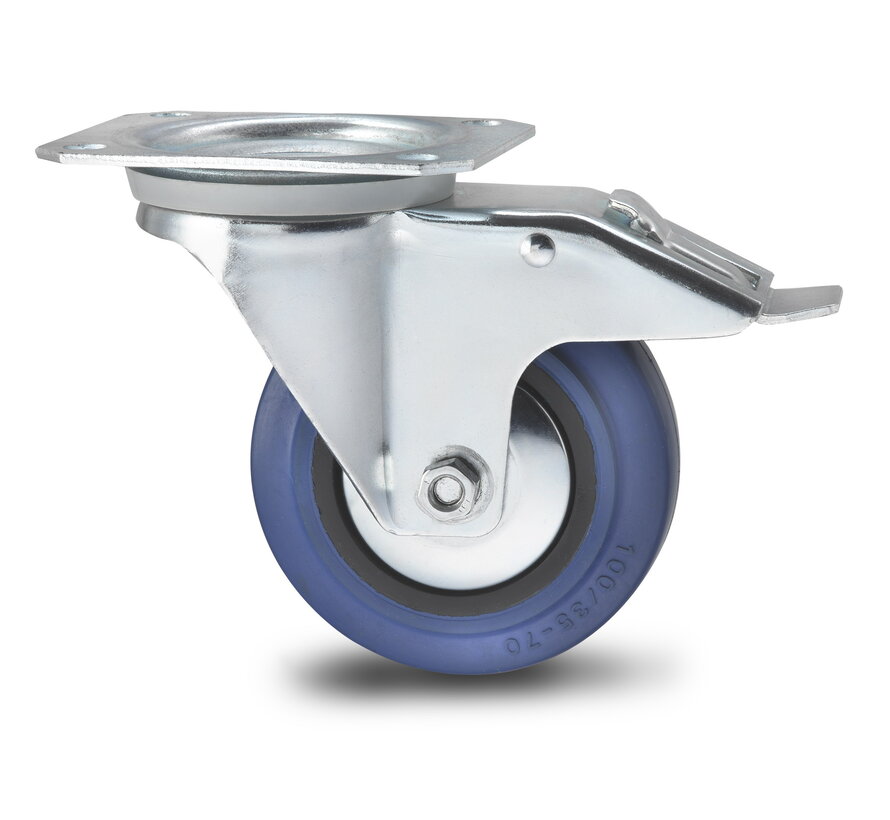

Swivel castor with brake made of pressed sheet steel, plate fitting, elasticated rubber tyre, roller bearing, Wheel Ø 100 mm, 150KG

Wheel: elastic rubber tyre, with polyamide wheel core, roller bearing, thread protectors

Advantages: Versatile use with excellent rolling properties. Low-noise and vibration damping, streak-free.

Applications: flight case , roller container castors, industrial trolleys, flight case , theatre & entertainment, blue elastic rubber

Suitable surfaces: Almost any surface. Uneven surfaces such as clinkers, damaged floors and near obstacles such as thresholds.
Suitable environment : Dry and not permanently damp. With weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 100 mm, elasticated rubber tyre, 150KG

Swivel castor with brake made of pressed sheet steel, plate fitting, elasticated rubber tyre, roller bearing, Wheel Ø 100 mm, 150KG

Delivery within 4 business days possible

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Delivery within 4 business days possible

Product information

  • SKU 146572103K
  • EAN 8718116104469

Specifications

  • Non marking tread Yes
  • Wheel diameter 100
  • Load capacity 150
  • Overall height 128
  • Size of top plate 105x80
  • Topplate hole centres 80x60
  • Plate hole 9
  • Offset 37
  • Swivel Radius 87.0
  • Bearing type Roller bearing
  • Hardness of tread 70° Shore A
  • Tread description Blue (flight case) wheels with elastic rubber tyre, these wheels have low rolling and swivel resistance, absorb shocks and leave no marks.
  • Temperature -20 / +60
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Brake Plastic brake blocks both the swivelling and turning movement of the wheel. The trailing short brake has the advantage that it protrudes minimally
  • Series 46.57
  • Tread Solid rubber
