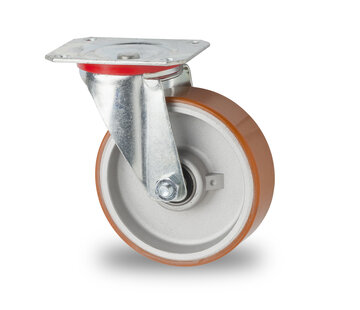

swivel castor with brake, Ø 125 mm, vulcanised polyurethane tyre, 200KG

Product description

Swivel castor with brake made of pressed sheet steel, plate fitting, vulcanised polyurethane tyre, precision ball bearing, Wheel Ø 125 mm, 200KG

Wheel: vulcanised polyurethane tyre, with aluminium wheel core, precision ball bearing,

Advantages: For medium-heavy transport on flat floors. Low rolling resistance. Relatively insensitive to notches and very wear-resistant. Non-stretching tyre, low-noise running, hygienic.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable surfaces: Hard and flat such as tiles, cement and coatings.
Suitable environment : Both indoors and outdoors. For alcohol, glycol, mineral oils and greases.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 125 mm, vulcanised polyurethane tyre, 200KG

Swivel castor with brake made of pressed sheet steel, plate fitting, vulcanised polyurethane tyre, precision ball bearing, Wheel Ø 125 mm, 200KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 146416124
  • EAN 8718116103592

Specifications

  • Non marking tread Yes
  • Wheel diameter 125
  • Load capacity 200
  • Overall height 155
  • Size of top plate 105x 80
  • Topplate hole centres 80x60
  • Plate hole 9
  • Offset 40
  • Swivel Radius 102.0
  • Bearing type Ball bearing
  • Hardness of tread 95° Shore A
  • Tread description Wheel with vulcanised polyurethane tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Series 46.41
  • Tread Polyurethane
