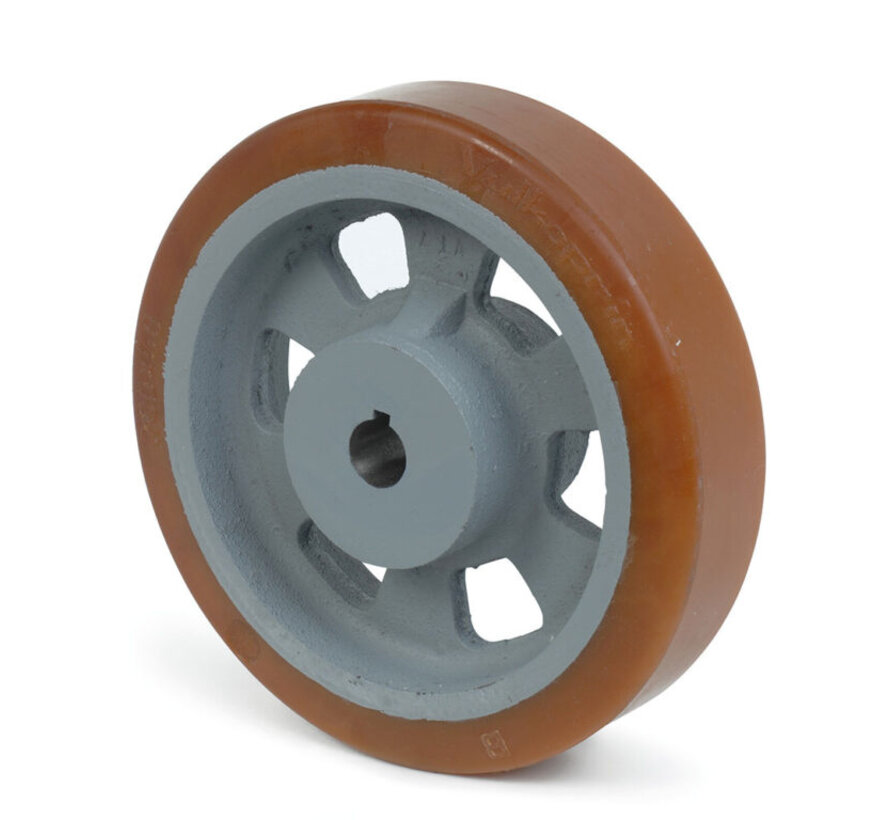

driving wheel Vulkollan® Bayer running surface cast iron core, Ø 150x40mm, 500KG

Product description

Heavy duty driving wheel Vulkollan® Bayer running surface cast iron core, bore H7 keyway according to DIN 6885 JS9, Wheel Ø 150mm, 500KG

Wheel: driving wheel Vulkollan® Bayer running surface cast iron core with bore H7 keyway to DIN 6885 JS9

Vulkollan® : For intensive use where wear resistance and bonding of the tyre to the core are essential!

Wheel diameter : 150mm
Tyre width : 40mm
Hub length: 60mm
Hub diameter Ø: 63mm
Axle hole Ø: 40mm
Load capacity (static): 500 KG
Temperature: -40 to +85mm
Tread: Vulkollan® 92° Shore A
Wheel core: cast iron core with bore H7 keyway according to DIN 6885 JS9

Advantages: Very solid wheel with cast Bayer Vulkollan® tyre. Minimal rolling resistance and excellent rolling properties. Does not leave any marks. Shock and noise resistant.

Applications: Heavy trolleys, machine construction, driving drums, waste water treatment.

Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Resistant to oils, greases and various chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

driving wheel Vulkollan® Bayer running surface cast iron core, Ø 150x40mm, 500KG

Heavy duty driving wheel Vulkollan® Bayer running surface cast iron core, bore H7 keyway according to DIN 6885 JS9, Wheel Ø 150mm, 500KG

3-4 Weeks

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: 3-4 Weeks

Product information

  • SKU 10045F150I
  • EAN 8718116175193

Specifications

  • Non marking tread Yes
  • Wheel diameter 150
  • Load capacity 500
  • Bearing type Keyway according to DIN 6885 JS9
  • Hardness of tread 92° Shore A
  • Type of wheel Drive wheels
  • Temperature -40 / +85°C
  • Hub length 60
  • Axle hole-Ø 40
  • Series 100.45F
  • Hub diameter 63.0
  • Tread Vulkollan
