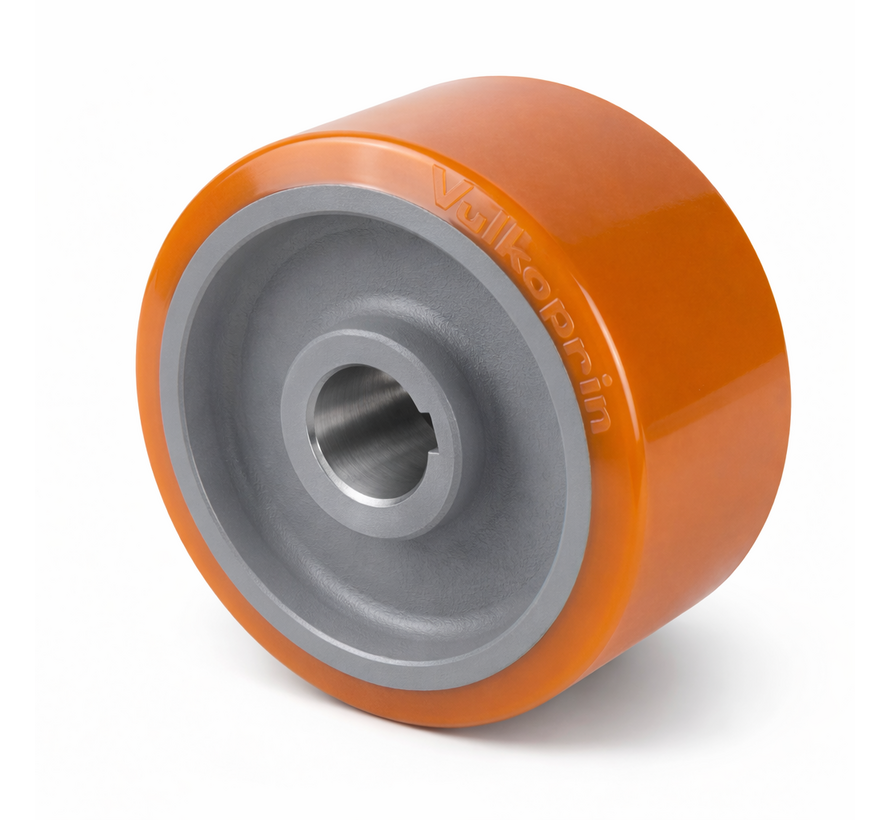

driving wheel Vulkollan® Bayer running surface steel-welded core, Ø 250x130mm, 2700KG

Product description

Heavy duty driving wheel Vulkollan® Bayer running surface steel-welded core, bore H7 keyway according to DIN 6885 JS9, Wheel Ø 250mm, 2700KG

Wheel: driving wheel Vulkollan® Bayer running surface Steel-welded core with bore H7 keyway to DIN 6885 JS9

Vulkollan®: For intensive use where wear resistance and bonding of the tyre to the core are essential!

Wheel diameter : 250mm
Tyre width : 130mm
Hub length: 130mm
Hub diameter Ø: 101mm
Axle hole Ø: 55mm
Load capacity (static): 2700 KG
Temperature: -40 to +85°C
Tread: Vulkollan® 92° Shore A
Wheel core: steel-welded core with bore H7 keyway according to DIN 6885 JS9

Advantages: Very solid wheel with moulded Bayer Vulkollan® tyre. Minimal rolling resistance and excellent rolling properties. Does not leave any marks. Shock and noise resistant.

Applications: Heavy trolleys, machine construction, driving drums, waste water treatment.

Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Resistant to oils, greases and various chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

driving wheel Vulkollan® Bayer running surface steel-welded core, Ø 250x130mm, 2700KG

Heavy duty driving wheel Vulkollan® Bayer running surface steel-welded core, bore H7 keyway according to DIN 6885 JS9, Wheel Ø 250mm, 2700KG

Manufactured to order

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Manufactured to order

Product information

  • SKU 10045S252M
  • EAN 8718116175629

Specifications

  • Non marking tread Yes
  • Wheel diameter 250
  • Load capacity 2700
  • Bearing type Keyway according to DIN 6885 JS9
  • Hardness of tread 92° Shore A
  • Type of wheel Drive wheels
  • Temperature -40 / +85
  • Hub length 130
  • Axle hole-Ø 55
  • Series 100.45EH
  • Tyre / rim connection vulcanised
  • Hub diameter 101.0
  • Tread Vulkollan
