Industrial Fixed Castor, Ø125x38mm Elastic Rubber Tyre with Aluminium Wheel Centre, Precision Ball Bearing, Pressed Steel Housing – 200kg Load Capacity

Product description

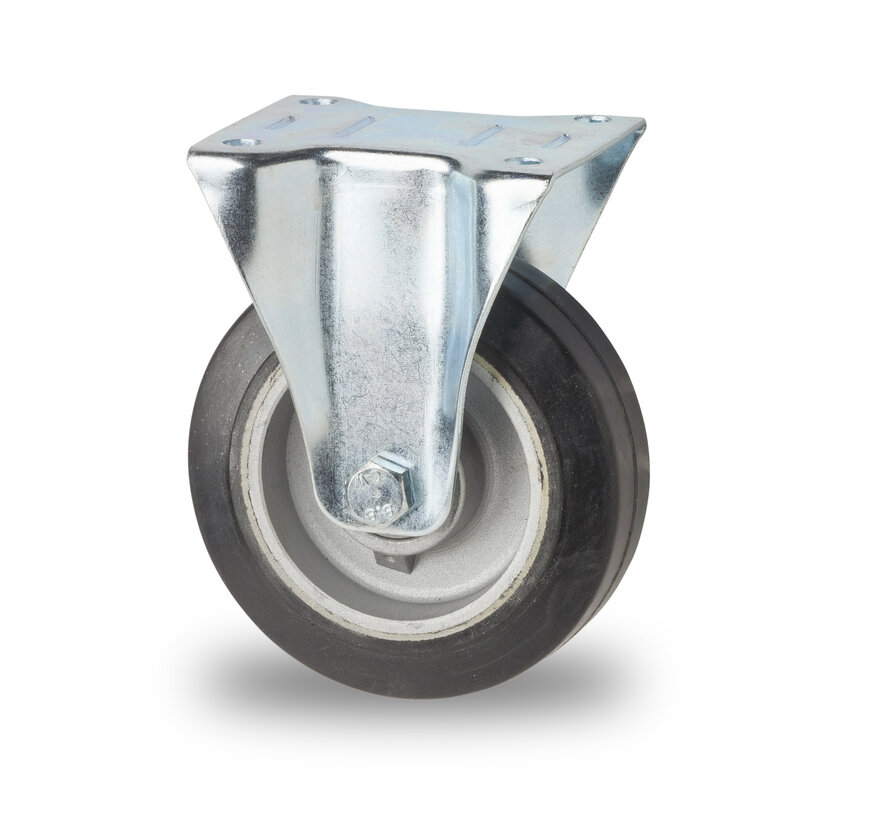

Industrial fixed castor Ø125x38mm with elastic rubber tyre and aluminium wheel centre. Precision ball bearing, pressed steel housing, 200kg load capacity. Low noise and excellent rolling characteristics.

Industrial, elastic rubber Fixed castor

Housing: pressed steel, bright zinc plated, blue passivated, plate fitting
Wheel: elastic-tyre, with Wheel centre from Aluminium, precision ball bearing,

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Permanently dry and not humid. By weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Fixed Castor, Ø125x38mm Elastic Rubber Tyre with Aluminium Wheel Centre, Precision Ball Bearing, Pressed Steel Housing – 200kg Load Capacity

Industrial fixed castor Ø125x38mm with elastic rubber tyre and aluminium wheel centre. Precision ball bearing, pressed steel housing, 200kg load capacity. Low noise and excellent rolling characteristics.

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 246116121
  • EAN 8718116120636

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 125
  • Wheel witdh (mm) 38
  • Load capacity (kg) 200
  • Overall height (mm) 155
  • Size of top plate (mm) 105x80
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 9
  • Bearing type precision ball bearing
  • Hardness of tread 75° Shore A
  • Tread description Elastic black vulcanised rubber tyre, with the shock-absorbing properties and low rolling resistance.
  • Temperature -20 / +60°C
  • Castor wheel type Fixed castor wheel
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Fixed fork made of pressed galvanised sheet steel
  • Series 46.11
  • Tread elastic-tyre
