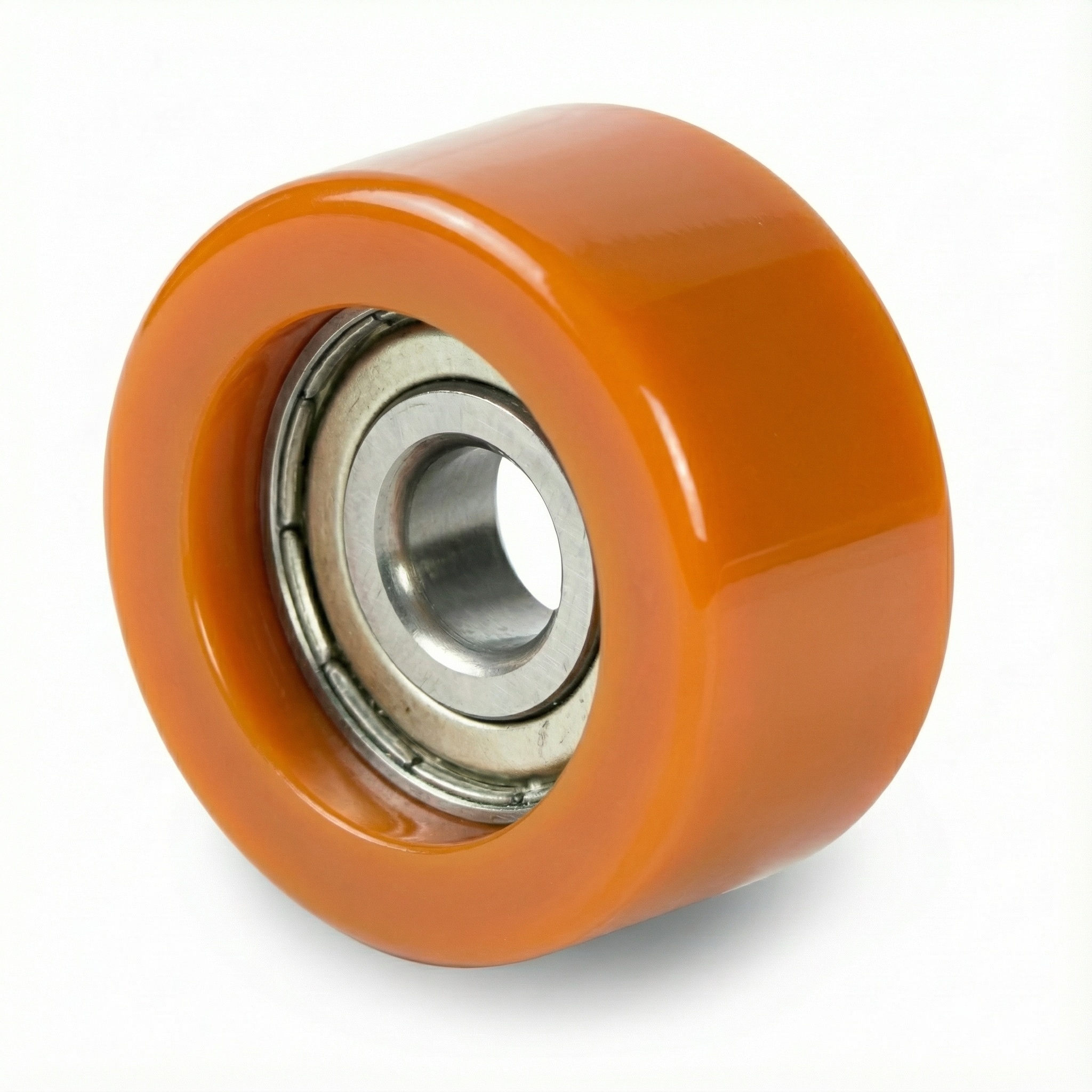

Printhopan guiding roller tread Vulkopan steel core, precision ball bearing, Wheel-Ø 45mm, KG

Product description

Printhopan guiding roller tread Vulkopan steel core, precision ball bearing, Wheel-Ø 45mm, KG

Wheel: Printhopan guiding roller tread Vulkopan steel core with precision ball bearing

Vulkopan: For intensive use where abrasion resistance and binding of the band at the core are essential!

Wheel diameter : 45mm
Width of tread: 15mm
Axle hole-Ø: 12mm
Load capacity (static): 80 KG
Temperature: -40 tot +85mm
tread: Vulkopan 59° Shore D
wheel centre: precision ball bearing with precision ball bearing

Features: Minimal rolling restistance and excelent rolling properties, Does not mark the floor / contact surface, High mechanical restistance and extremely wear restistant.

Applications: Conveyor- and transport systems, elevator construction, sorting systems, material handling.

Suitable surface:
Suitable environment: Resistant to oils, greases and various chemicals

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Printhopan guiding roller tread Vulkopan steel core, precision ball bearing, Wheel-Ø 45mm, KG

Printhopan guiding roller tread Vulkopan steel core, precision ball bearing, Wheel-Ø 45mm, KG

2 weeks delivery time. Do you need it quicker? Let us know!

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: 2 weeks delivery time. Do you need it quicker? Let us know!

Product information

  • SKU 100456045B
  • EAN 8718116081937

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 45
  • Wheel witdh (mm) 15
  • Load capacity (kg) 80
  • Bearing type precision ball bearing
  • Hardness of tread 59° Shore D
  • Tread description Guide rolls 59° Shore D made of high-quality polyurethane (Printhopan). highly abrasion-resistant
  • Type of wheel Guide rollers
  • Temperature -40 / +85°C
  • Axle hole-Ø (mm) 12
  • Series 100.45VP
  • Tread Vulkopan
