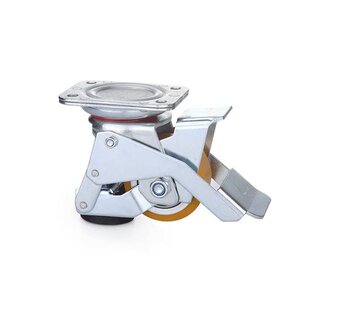

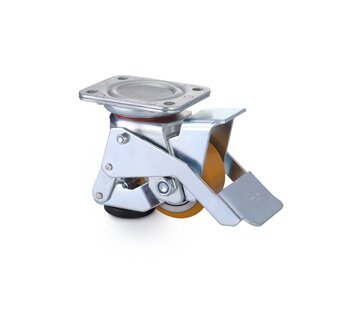

Stainless steel lifting swivel castor with adjustable foot polyamide wheel

Product description

FAST & SIMPLE MACHINES, PLATFORMS, EQUIPMENT, TEST APPARATUS, MEASUREMENT INSTRUMENTS, etc. RELOCATE.

Our latest innovation for the mobility of machinery and equipment.

In response to a common request, we have developed a unique stainless steel castor with an adjustable base

When the brake is applied, the adjustable leveling foot takes the load off the wheel making the machine stable on the ground.

  • Up to 350KG load capacity
  • Stainless steel.
  • By means of a foot pedal, the adjustable foot can be quickly and easily "switched on" at the desired location and fixed there.
  • The adjustable foot enables level positioning of a machine.
  • Stable stand guaranteed by foot with non-slip sole
  • Also available in galvanised fork with polyurethane or polyamide wheel
  • Reinforced stainless steel (SS) sheet steel housing, double hardened ball ring with seal and grease nipple


A stainless steel swivel castor with adjustable foot lock. When the brake is applied, the adjustable leveling foot takes the load off the wheel, making the machine stable on the ground.

Nylon wheel
Wheel diameter: 80 mm (75 &125 mm on request)
Mounting plate size: 105 x 85 mm
Bolt hole spacing: 80 x 60 mm
Bolt hole diameter: 9 mm
Total height to wheel: 112 mm
Overall height unfolded adjustment foot: 117-123 mm
Load capacity: 350 KG

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless steel lifting swivel castor with adjustable foot polyamide wheel

FAST & SIMPLE MACHINES, PLATFORMS, EQUIPMENT, TEST APPARATUS, MEASUREMENT INSTRUMENTS, etc. RELOCATE.

Depending on quantity

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Depending on quantity

Product information

  • SKU 194339808
  • EAN 8718116204398

Specifications

  • Non marking tread Yes
  • Wheel diameter 80
  • Wheelwitdh 40
  • Load capacity 350
  • Overall height 112
  • Size of top plate 105 x 85
  • Topplate hole centres 80 x 60
  • Plate hole 9
  • Bearing type Stainless steel precision ball bearing
  • Tread description Polyamide (PA6) wheels
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Series 194.33
  • Country of Manufacture EN
  • Tread Plastic
