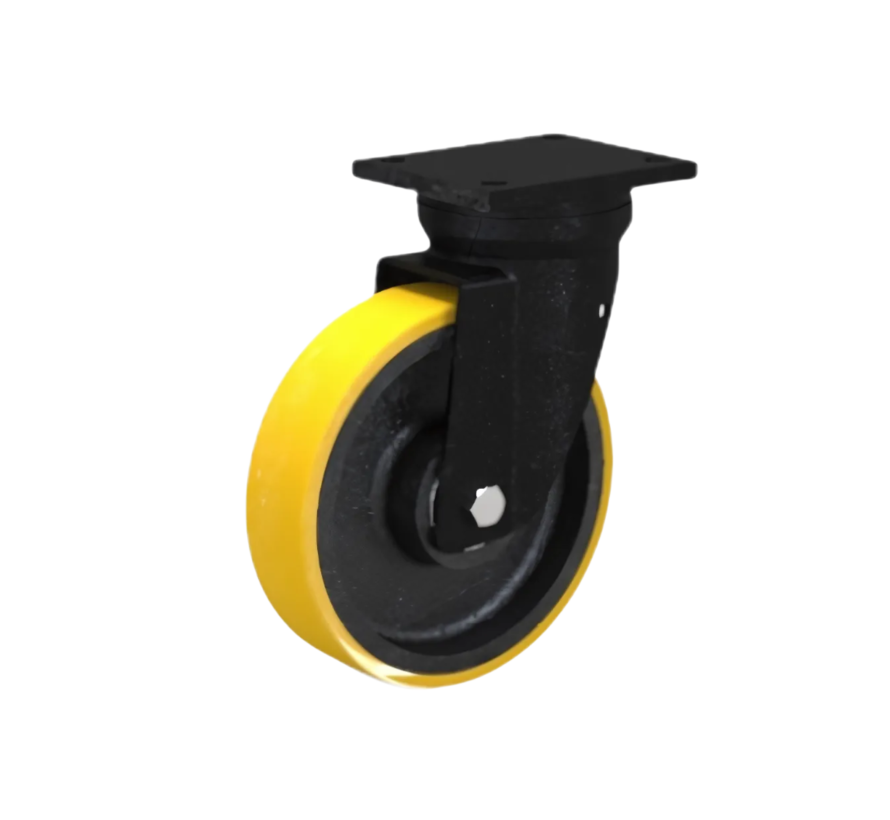

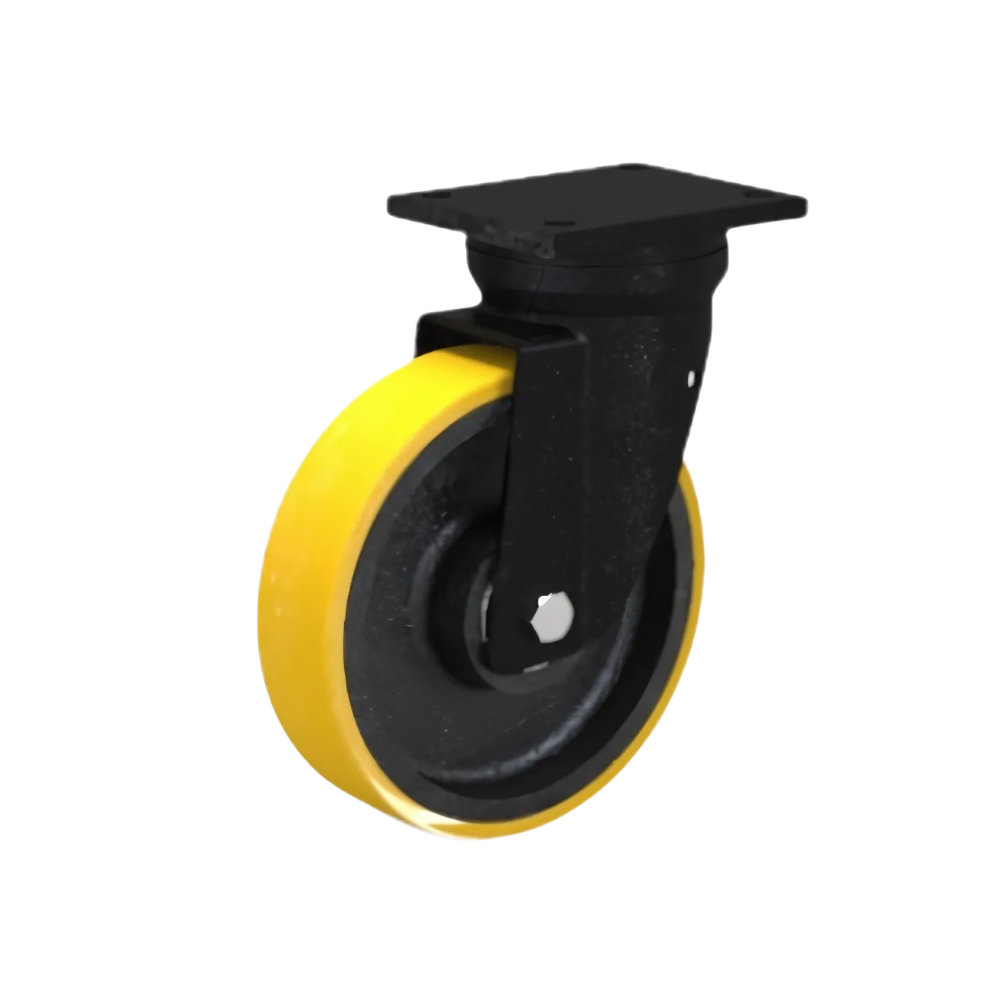

swivel castor, Ø 150mm, vulcanised polyurethane tyre, 800KG

Product description

Heavy duty swivel castor made of welded steel fork, plate fitting, vulcanised polyurethane tyre, precision ball bearing, Wheel Ø 150mm, 800KG

Wheel: vulcanised polyurethane tyre, with cast iron core wheel, precision ball bearing,

Advantages: For very heavy transport on flat floors. Low rolling resistance. Relatively insensitive to notches and very wear-resistant.

Applications: Heavy material handling, heavy containers, automotive plants, petrochemical plants, heavy transport, ports, armed forces, aviation, bridge cranes, chemical plants.

Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor, Ø 150mm, vulcanised polyurethane tyre, 800KG

Heavy duty swivel castor made of welded steel fork, plate fitting, vulcanised polyurethane tyre, precision ball bearing, Wheel Ø 150mm, 800KG

3-4 Weeks

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: 3-4 Weeks

Product information

  • SKU 103646152
  • EAN 8718116095163

Specifications

  • Non marking tread No
  • Wheel diameter 150
  • Load capacity 800
  • Overall height 205
  • Size of top plate 135x110
  • Topplate hole centres 105x80
  • Plate hole 13
  • Offset 45
  • Swivel Radius 120.0
  • Bearing type Ball bearing
  • Hardness of tread 91° Shore A
  • Temperature -20 / +85°C
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Series 03.64
  • Tread Polyurethane
