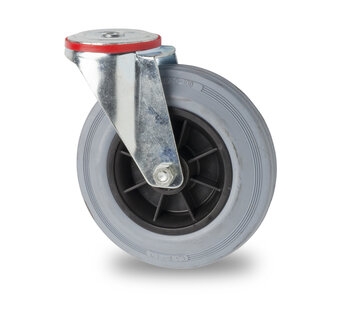

swivel castor with brake, Ø 100 mm, grey rubber tyre, 80KG

Product description

transport swivel castor with brake made of pressed sheet steel, bolt hole fitting, grey rubber tyre, roller bearing, Wheel-Ø 100mm, 80KG

wheel: grey rubber tyre, with polyamide wheel core, roller bearing, thread protectors

Advantages: The solid rubber tyres have a hardness of 80° Shore A and offer good driving characteristics, roll silently, are impact and shock resistant, corrosion resistant and have medium rolling resistance.

Applications: Versatile use for light transport in e.g. offices, warehouses, shops and institutions. Low-noise, impact-resistant and vibration-damping. Swivel castor for light applications. Less suitable for long-term static use under maximum load.

Suitable surfaces: Almost any surface: uneven surfaces such as cobbles, damaged floors and at obstacles such as thresholds. The tape may leave black marks.
Suitable environment : Dry and not permanently damp. With mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 100 mm, grey rubber tyre, 80KG

transport swivel castor with brake made of pressed sheet steel, bolt hole fitting, grey rubber tyre, roller bearing, Wheel-Ø 100mm, 80KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140652103
  • EAN 8718116099680

Specifications

  • Non marking tread Yes
  • Wheel diameter 100
  • Load capacity 80
  • Overall height 128
  • Offset 35
  • Swivel Radius 85.0
  • Bearing type Roller bearing
  • Hardness of tread 80° Shore A
  • Tread description Grey, non-marking, solid rubber tyre, rides silently over hard surfaces, ideal for use in offices, hospitals.
  • Temperature -20 / +60
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Bolt hole diameter 13
  • Series 40.65
  • Tread Solid rubber
