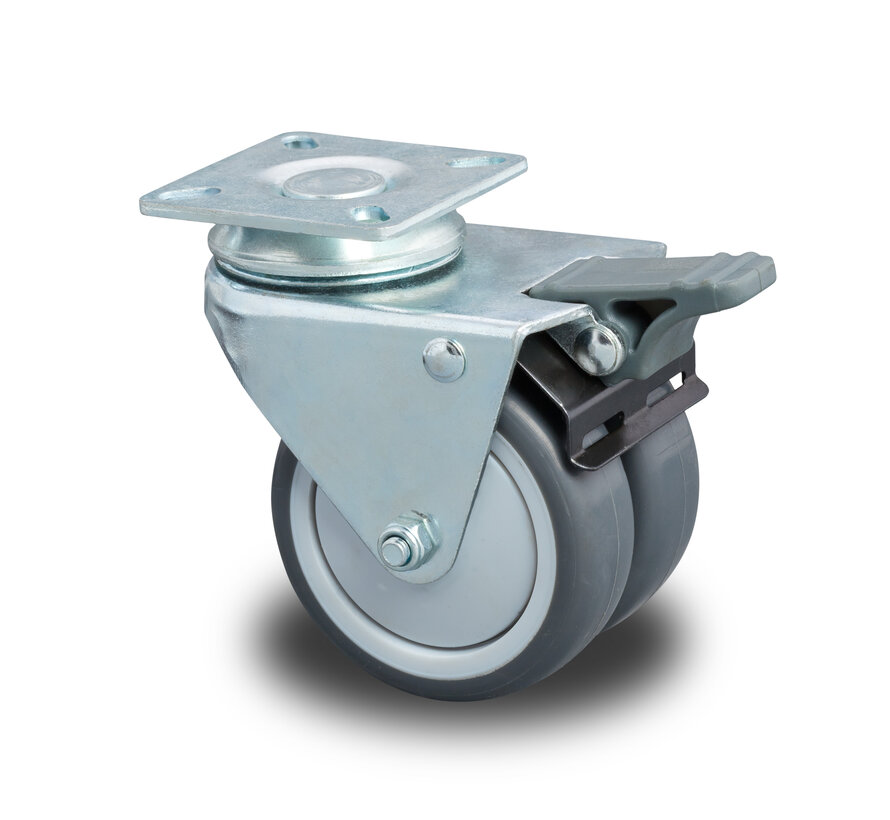

Institutional Swivel Castor with Brake, Ø75x24mm Grey Thermoplastic Rubber (TPR), Dual Polypropylene Wheels, Plain Bearing, Pressed Steel Housing with Total Lock – 100kg Load Capacity

Product description

Institutional swivel castor with brake, Ø75x24mm grey TPR dual wheels and polypropylene centre. Total lock, plate hole centres 38x38mm, overall height 99mm, 100kg load capacity. Non-marking and smooth rolling.

Institutional thermoplastic (TPR) non-marking Swivel caster with brake

Housing: pressed steel, Total lock, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: Polypropylene Wheel, with Wheel centre from Polypropylene, plain bearing, double castors

Features: Versatile wheel for use on a flat surface. Dual wheels for a high load capacity at a low overall height

Applications: Excellent for static applications under load, such as heavier cabinets, freezers, etc.

Suitable surface: Smooth surface without any obstacles.
Suitable environment: Dry and not Permanently humid. For mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Institutional Swivel Castor with Brake, Ø75x24mm Grey Thermoplastic Rubber (TPR), Dual Polypropylene Wheels, Plain Bearing, Pressed Steel Housing with Total Lock – 100kg Load Capacity

Institutional swivel castor with brake, Ø75x24mm grey TPR dual wheels and polypropylene centre. Total lock, plate hole centres 38x38mm, overall height 99mm, 100kg load capacity. Non-marking and smooth rolling.

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 346884753
  • EAN 8718116134336

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 75
  • Wheel witdh (mm) 2x24
  • Load capacity (kg) 100
  • Overall height (mm) 99
  • Size of top plate (mm) 60x60
  • Topplate hole centres (mm) 42x42
  • Mounting hole diameter (mm) 6,2
  • Swivel offset (mm) 33
  • Swivel Radius 70
  • Bearing type precision ball bearing
  • Hardness of tread 90° Shore A
  • Tread description Grey thermo (TPR) rubber
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 34.88
  • Tread gray thermoplastic rubber, non-marking
