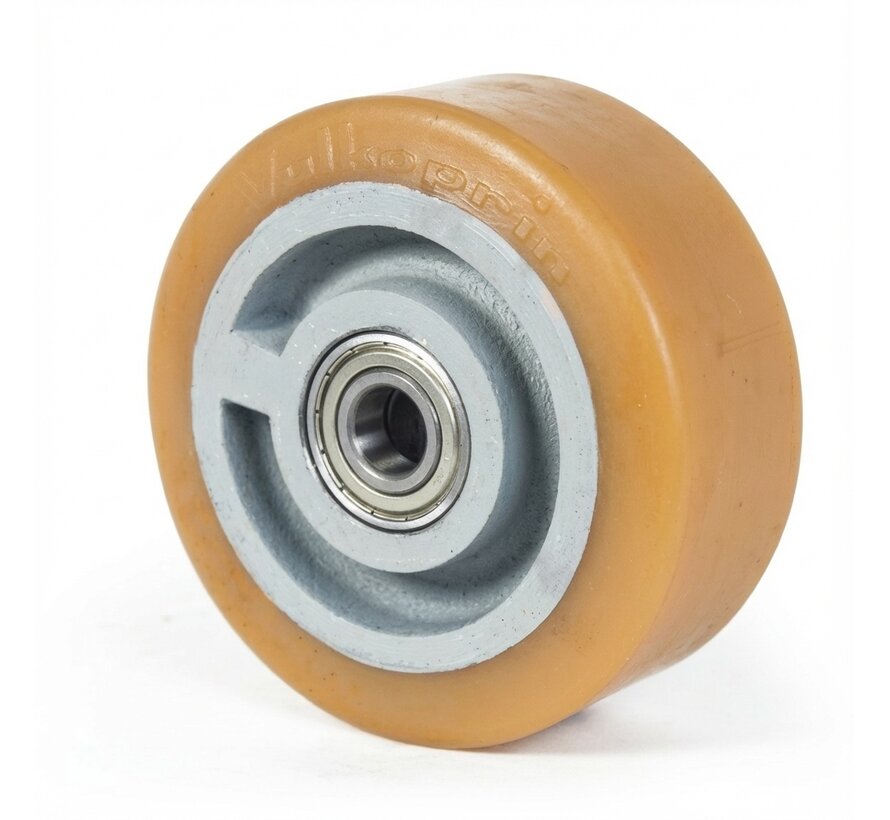

heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 300mm, 130KG

Product description

heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 300mm, 130KG

Wheel: Vulkollan® Bayer tread cast iron with precision ball bearing

Vulkollan®: For intensive use where abrasion resistance and binding of the band at the core are essential!

Wheel diameter : 300mm
Width of tread: 65mm
Hub length: 65mm
Hub diameter: 90mm
Axle hole-Ø: 30mm
Load capacity (static): 1300 KG
Temperature: -40 tot +85mm
tread: Vulkollan® 92° Shore A
wheel centre: cast iron with precision ball bearing

Features: Very solid wheel with firmly bonded Bayer Vulkollan® tyre. Minimal rolling restistance and excelent rolling properties. Does not mark the floor. Shock resistant and noise reducing.

Applications: Heavy trolley, mechanical engineering, drums, wastewater treatment

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Resistant to oils, greases and various chemicals

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 300mm, 130KG

heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 300mm, 130KG

2 weeks delivery time. Do you need it quicker? Let us know!

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: 2 weeks delivery time. Do you need it quicker? Let us know!

Product information

  • SKU 100456301G
  • EAN 8718116083160

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 300
  • Load capacity (kg) 1300
  • Bearing type Ball bearing
  • Hardness of tread 92° Shore A
  • Type of wheel Wheel
  • Temperature -40 / +85
  • Hub length (mm) 65
  • Axle hole-Ø (mm) 30
  • Series 100.45L
  • Tyre / rim connection vulcanised
  • Hub diameter Ø 90.0
  • Tread Vulkollan
